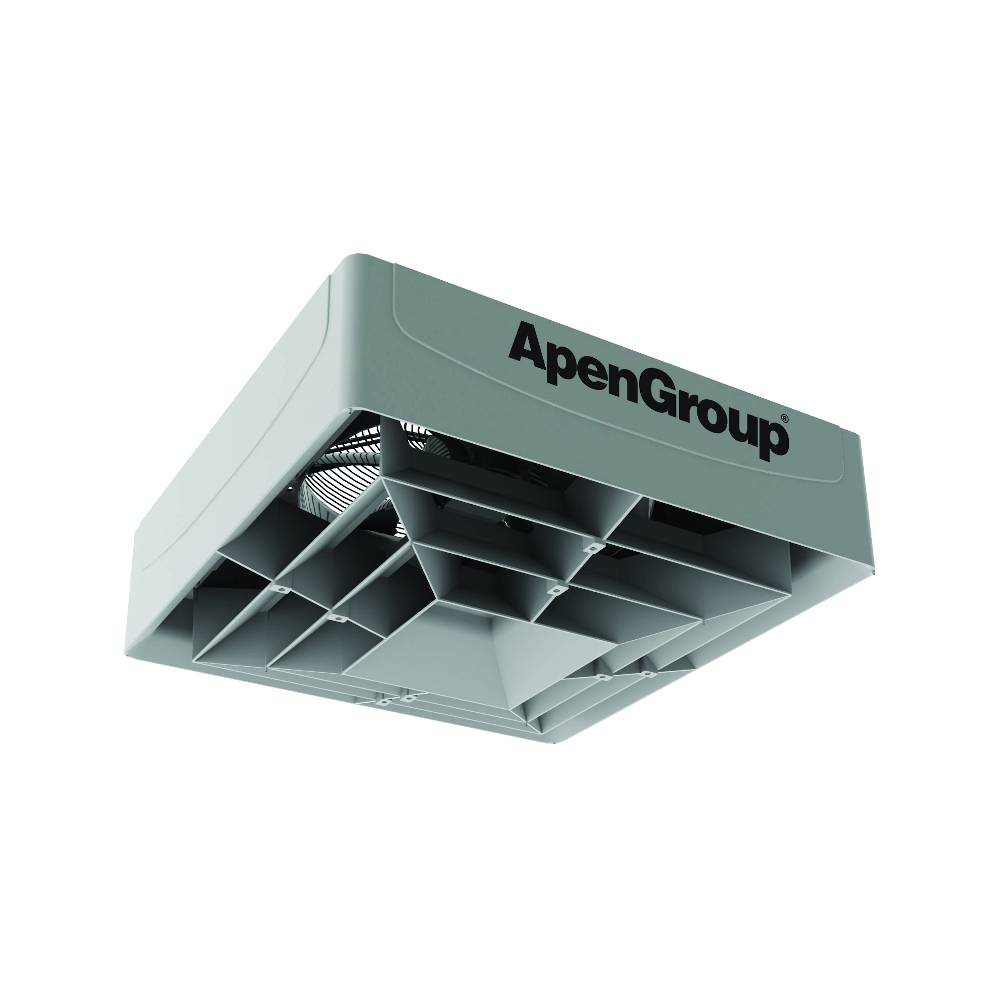

QUEEN destratificators

Designed to reduce the stratification of the air and to ensure a uniform ambient temperature.

QUEEN destratificators

Designed to reduce the stratification of the air and to ensure a uniform ambient temperature.

The concept of destratification underlying this product is simple: the hot air that tends to remain in the upper zones of the heated environments is drawn in by the axial fan mounted on the destratificator and is pushed downwards into the zones where people are present.
QUEEN destratificators feature:

  • available in two configurations:
    QUEEN Q
    QUEEN-EC with electronic fan.
  • they’re capable of handling large amounts of air, for both a direct effect and an induced effect.
  • the effect of the destratificators is combined with that of the heating appliances, as they mix the hot air that they generate with the ambient air.
  • ultra high efficiency, with environmental comfort being rapidly achieved.

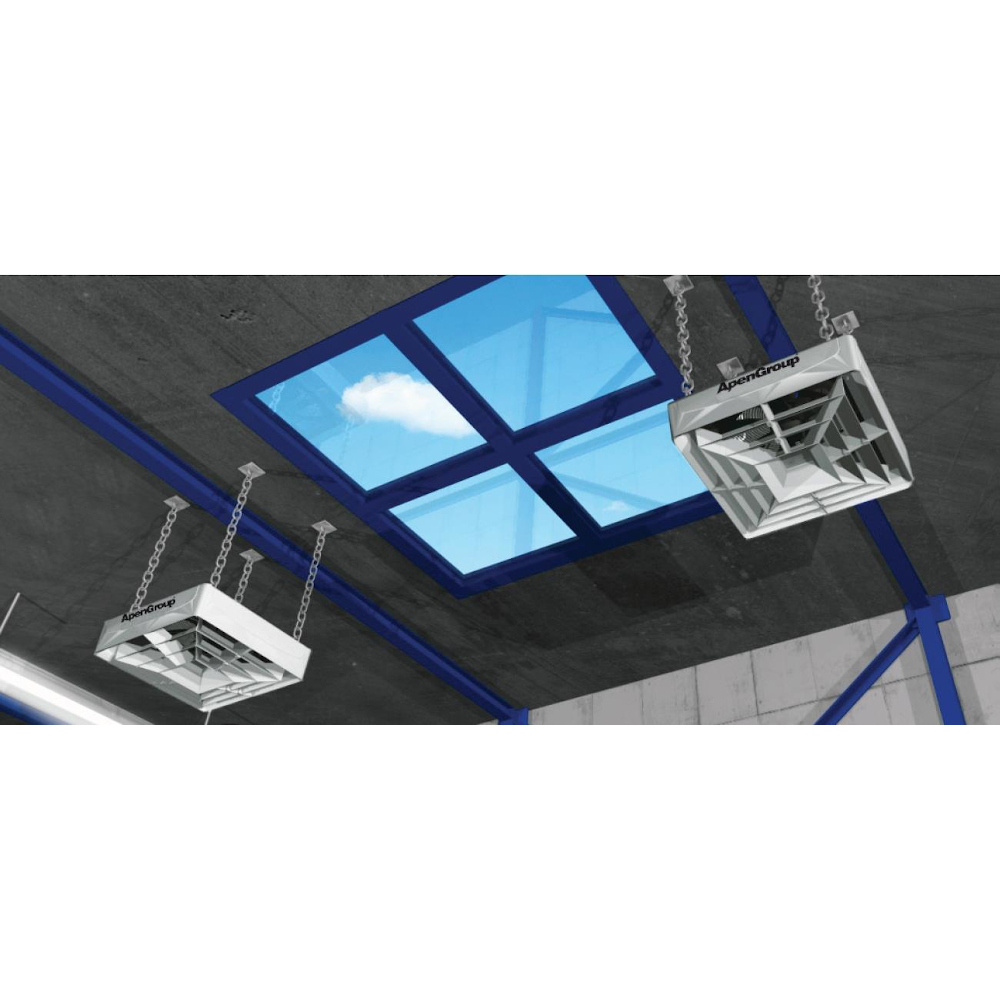

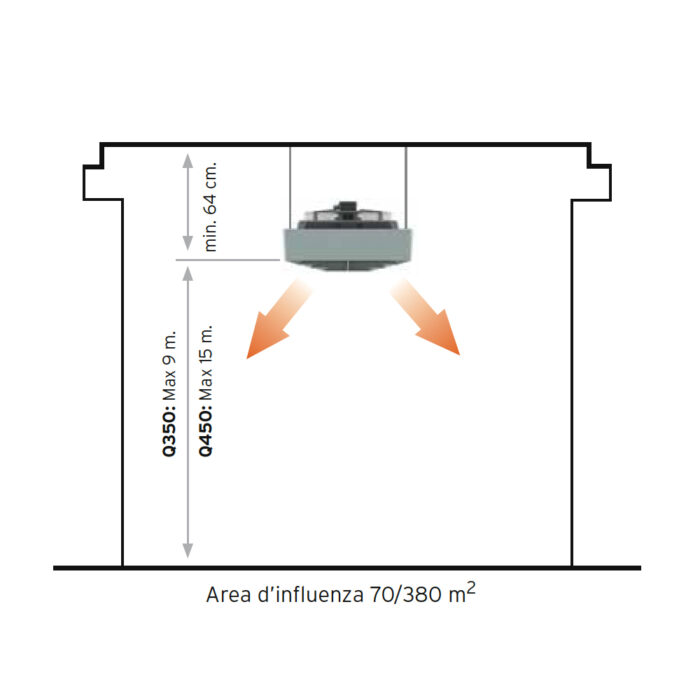

  • installation height that allows for the passage of overhead cranes or other self-propelled structures.
  • beneficial during both the wintertime and summertime, providing a reduction in humidity of over 20% and eliminating condensation.
  • various fields of application, including the industrial, commercial, and tertiary sectors.



REQUEST INFORMATION

Technical characteristics

  • ABS supporting structure and diffuser
  • Fin geometry with high diffusion efficiency
  • Air handling from 7,500 m3/h to 10,050 m3/h
  • Air handling from 8,050 m3/h to 10,900 m3/h (Q-EC version)
  • Effective range 70-380 m2
  • Absorbed power 130 W / 310 W
  • 230 V single-phase supply voltage
  • IP54 Protection rating

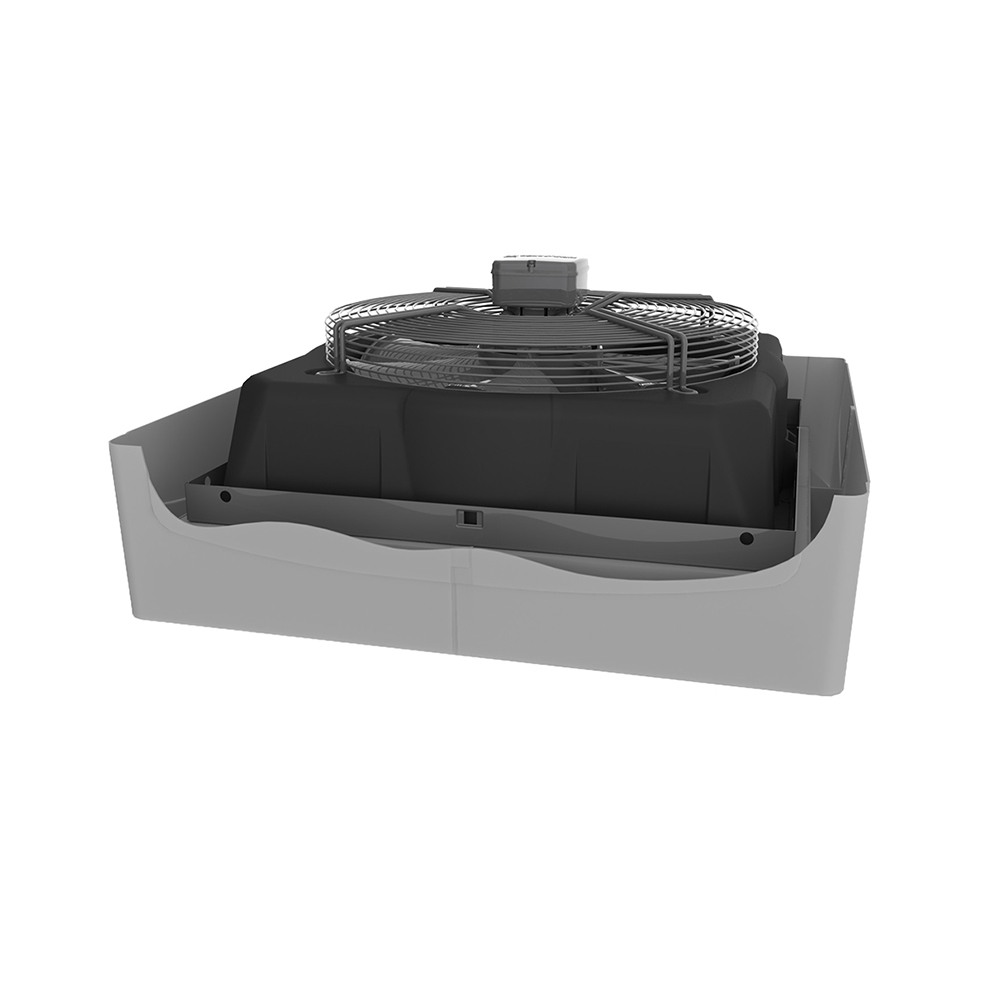

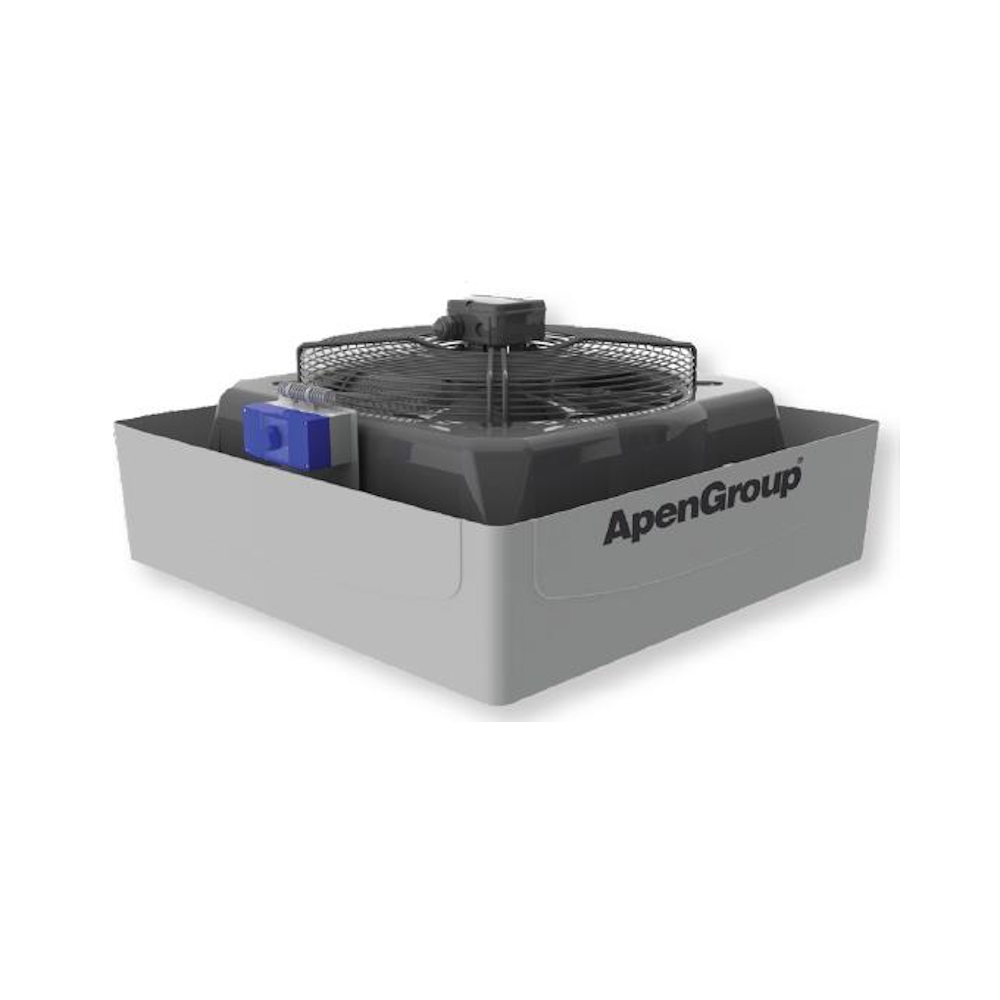

  • Axial fan
  • Possibility of adjusting the ventilation speed

Request information

Card Specifications

QUEEN

MODELTREATED AIR FLOW RATE m3/hINFLUENCE AREA m2POWER SUPPLY
Q3507.50070-200230V/1/50
Q45010.500150-380230V/1/50

QUEEN-EC

MODELTREATED AIR FLOW RATE m3/hINFLUENCE AREA m2POWER SUPPLY
Q350EC8.05070-200230V/1/50
Q450EC10.900150-380230V/1/50
