AKN Condensing Boilers

Ideal where the law prohibits the installation of direct exchange heating systems within the environment

AKN Condensing Boilers

Ideal where the law prohibits the installation of direct exchange heating systems within the environment

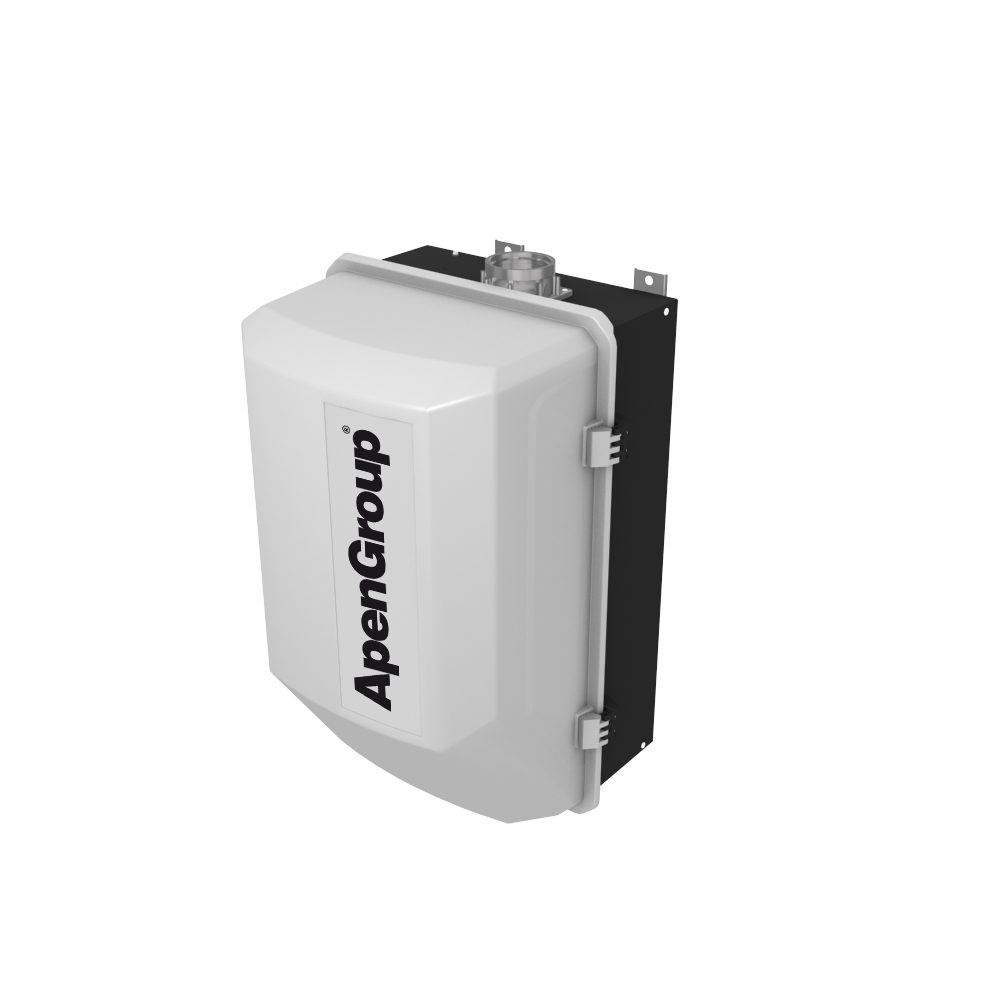

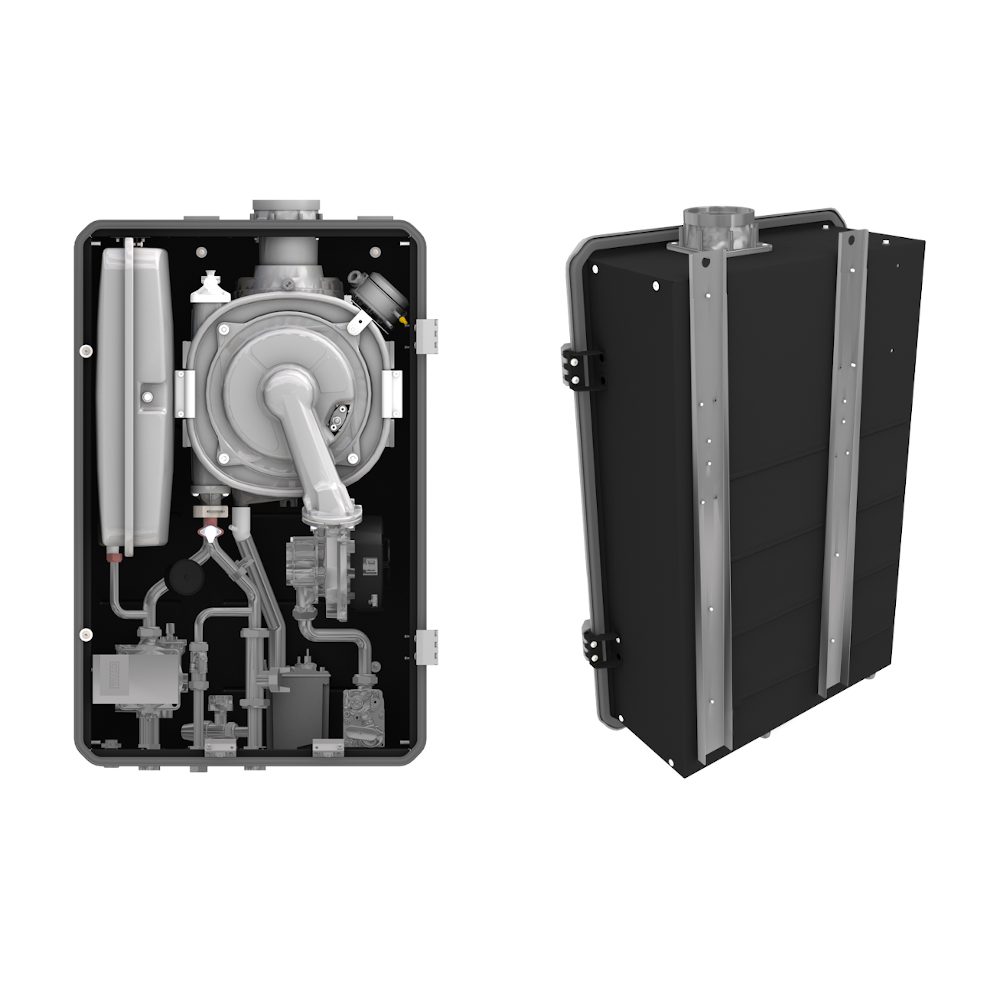

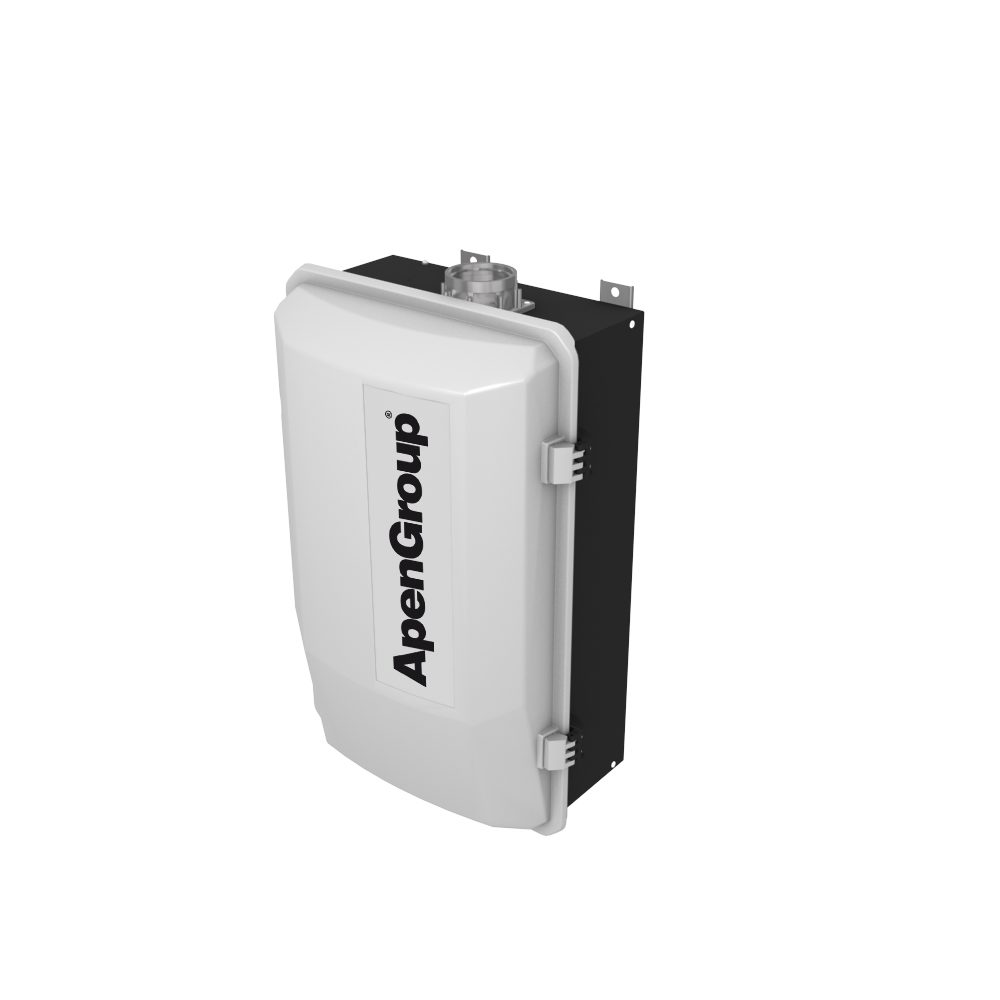

The AquaKond AKN is an indoor and outdoor condensing boiler with a low NOx burner, available in 34 kW, 50 kW, 70 kW and 100 kW versions, which can be combined with water fan heaters.
The project was conceived and realised with the aim of obtaining a product of the highest quality in terms of technology, ecology and design.

Class A


High combustion efficiencies of up to 108% ensure significant fuel savings compared to traditional non-condensing systems. Class A Energy efficiency (according to Reg. 811/2013/EC). Premixed burner in NOx 6 class according to EN15502-1.

REQUEST INFORMATION

Technical characteristics

  • Casing made of metallised ABS methacrylate.
  • Very high operating efficiency up to 108%.
  • Class 6 low-NOx pre-mixed modulating burner compliant with the EN15502-1 standard.
  • Low carbon stainless steel heat exchanger.
  • IPX5D Protection rating.
  • Microprocessor-controlled electronic equipment with self-testing functions for the management of all burner command and control operations.
  • Multifunctional LCD screen for boiler control and diagnostics.

Request information

Card Specifications

AKN Boiler

MODELUSEFUL HEAT OUTPUT (72/45°C) kWHEAT INPUT kWEFFICIENCY (WATER 72/45ºC)
AKN 034Min 7 – Max 35,4Max 34,8Min 103,5 – Max 101,8
AKN 050Min 8,5 – Max 50,6Max 49,9Min 101,7 – Max 101,5
AKN 070Min 12,3 – Max 70,5Max 69,6Min 104 – Max 101,3
AKN 100Min 17,3 – Max 97,6Max 96,6Min 104 – Max 101
