LKH - Hybrid Warm Air Heater

Sustainable heating and cooling solution

LKH - Hybrid Warm Air Heater

Sustainable heating and cooling solution

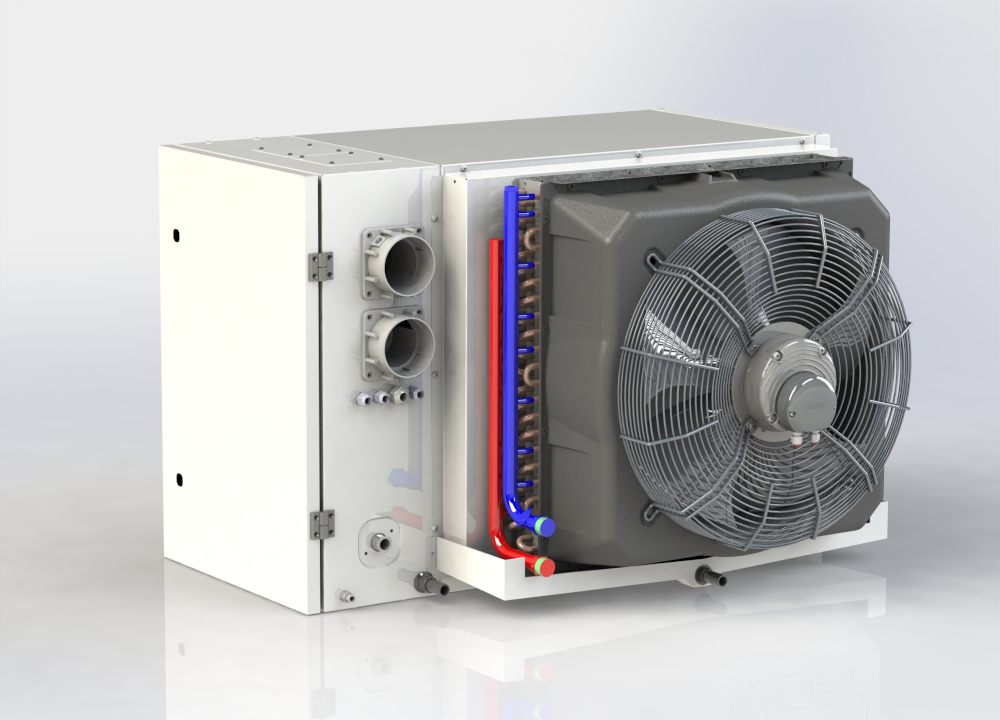

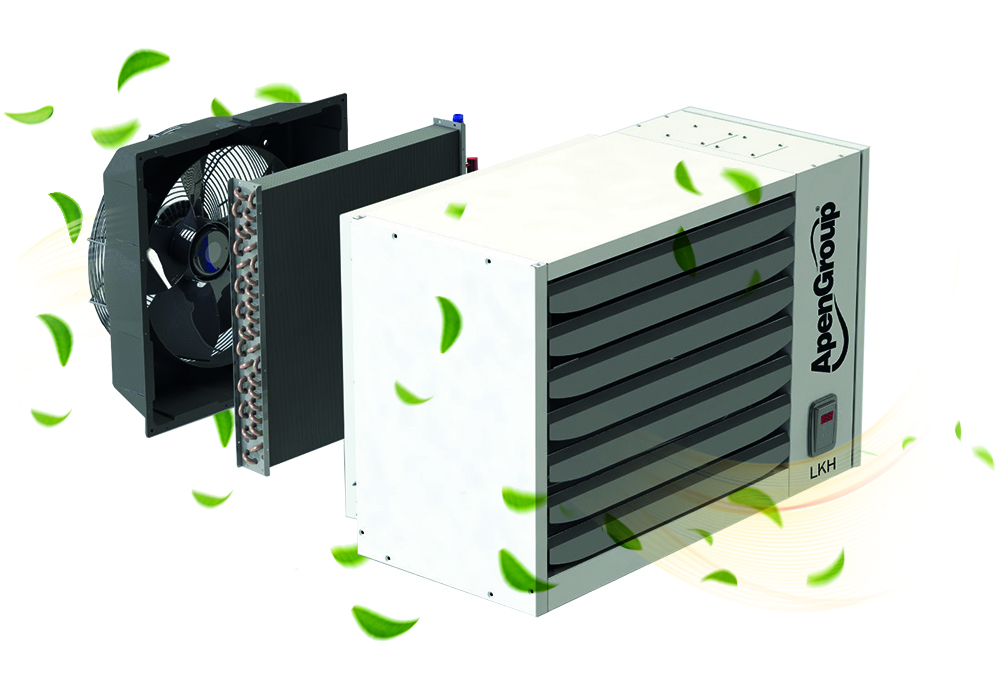

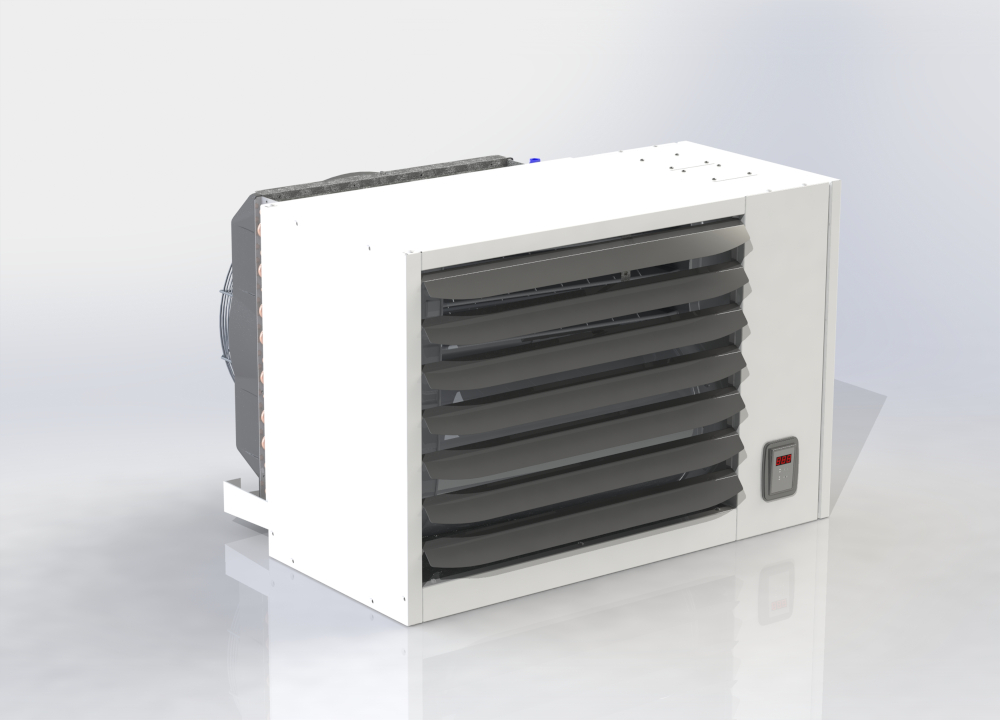

Hybrid Warm Air Heater

LKH is a hybrid warm air heater where there is a perfect combination between news green energy (thanks to heat pump – 14kW) and traditional gas warm air heater (thanks to the high efficiency unit heater – 30kW).
LKH is the green variant of the KONDENSA LK Series to heat (and cool) industrial and commercial areas and sporting halls.

Perfect combination between gas and green energy to heat (and cool thanks to heat pump):
Industrial areas – Commercial area – Sporting hall

compact dimensions

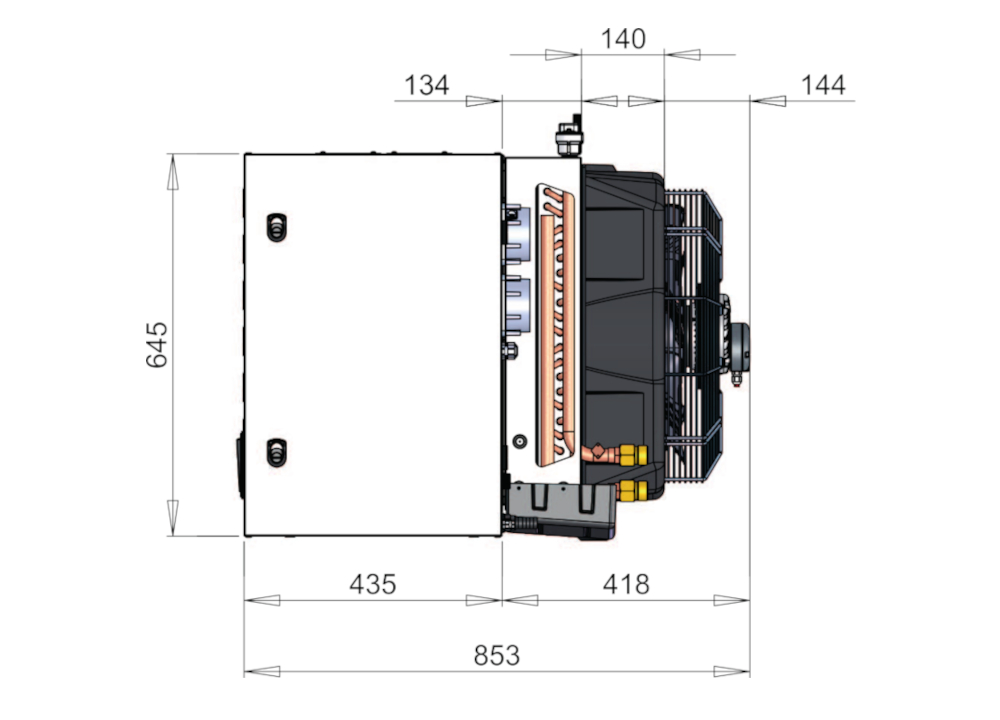

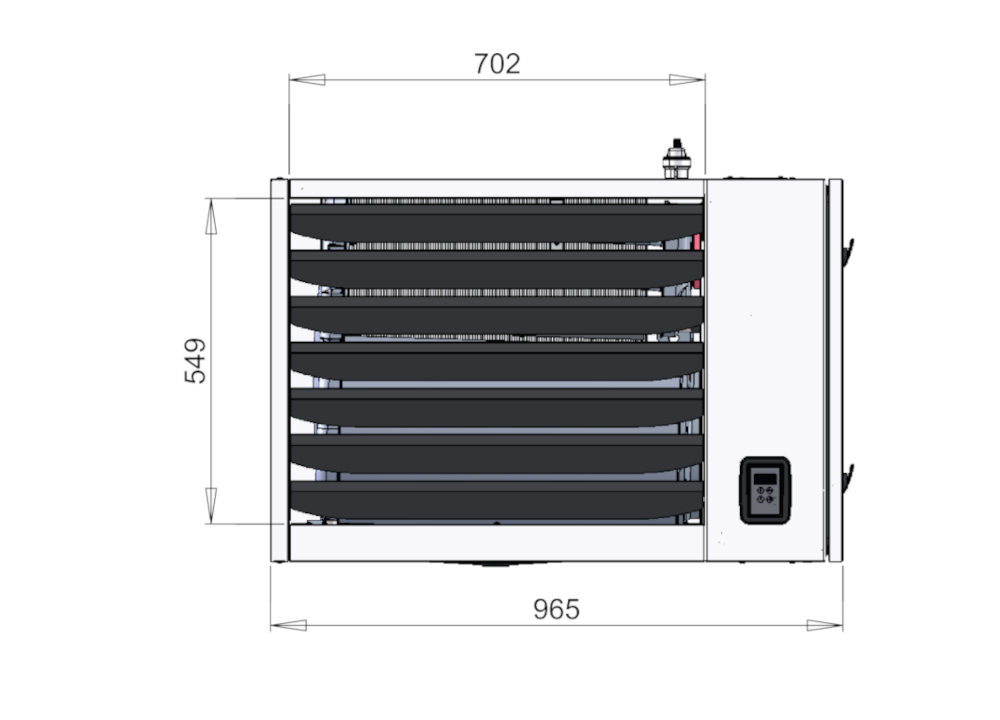

Compact dimensions

h 645 l 965 d 853

function

Function

Sustainable heating and cooling solution (Gas + Electricity)

control system

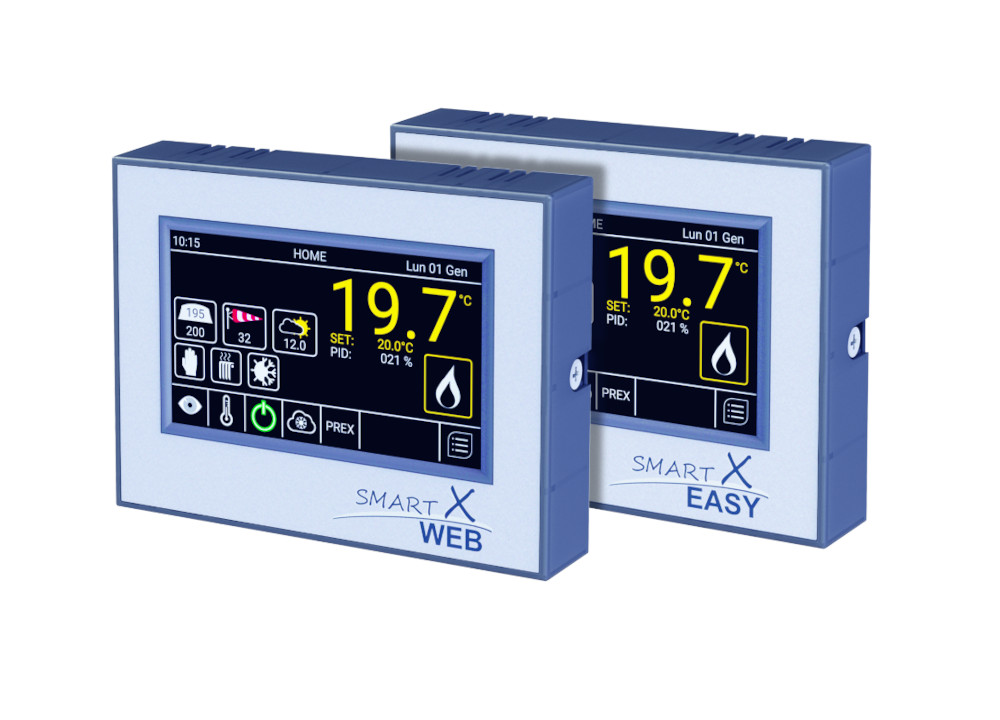

Control System

user-friendly Smart X control

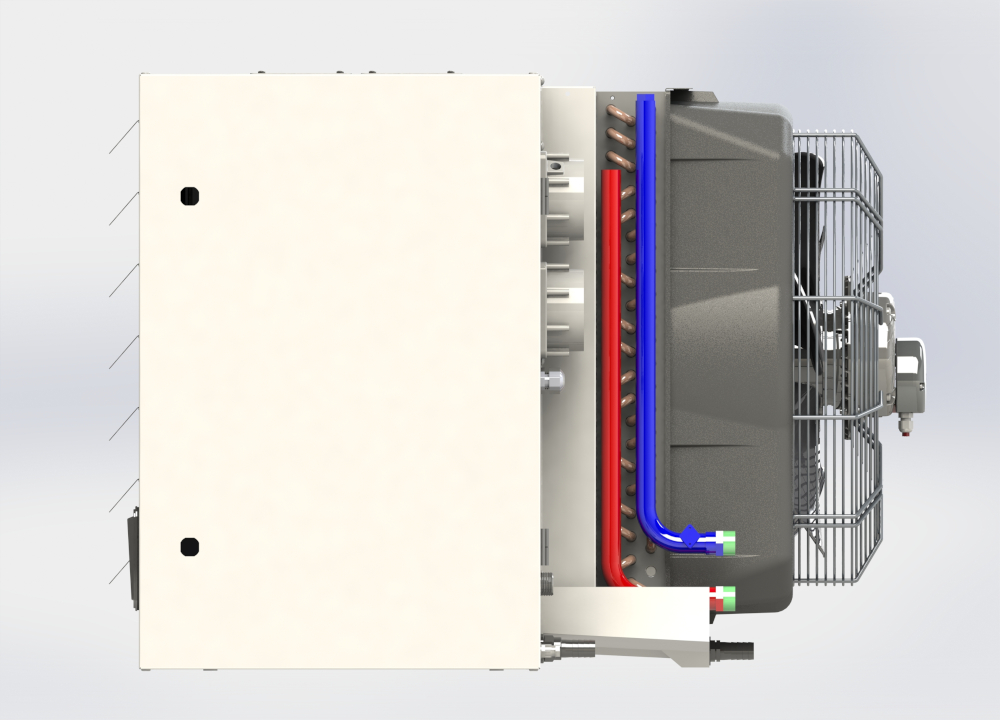

LKH schema



  • CONTROL SYSTEM:
    User-friendly SMART X controls
LKH - Optional smart X control

Technical details

HEAT PUMP + CONDENSING WARM AIR HEATER

Output Power[kW] Water ∆T[°C] Air ∆T[°C] Water Flow[m3 /h] Water ∆P[kPa] Air Flow[m3 /h]
Heating 15+30 (45) 45/40 15 2,3 20 4500 @10V
Cooling 12 07/12 11 2,3 20 1500 @4V

CONDENSING WARM AIR HEATER

  Output Power
[kW]
η η Seasonal
h
[Reg.UE/2281/2016]
NOx
(0% O2)
[hi]
NOx
(0% O2)
[hs]
Nominal heat input (MAX) 29 96% 93,10% 47 mg/kWh 42 mg/kWh
Nominal heat input (MIN) 7,5 108% 93,10% 26 ppm 24 ppm

HEAT PUMP

  Output Power
[kW]
Water ∆T
[°C]
Air ∆T
[°C]
Water Flow
[m3 /h]
Water ∆P
[kPa]
Heating 15 45/40 15 2,3 25
Cooling 12 07/12 11 2,3 25
